Products

Eco Seal® Series

ESL600 & ESL1000

DESCRIPTION

Eco Seal^® Series foams (ESL), are specially formulated for more demanding industrial, automotive, and construction applications. Characteristics common to all Gaska Tape flexible closed-cell foam products include the ability to make a long life seal against air, moisture, light and dust penetration when compressed 30% or more.

ESL600, light density foam is easily flexed and compressed and exhibits excellent conformability. Test results demonstrate that ESL600 can be classified to 2C0 (SCE-40) as specified by ASTM D 1056 and SAE J18.

ESL1000 is a medium density foam that exhibits good conformability with excellent dimensional stability. Test results demonstrate that ESL1000 can be classified to 2C1 (SCE-41) as specified by ASTM D 1056 and SAE J18.

PERFORMANCE CHARACTERISTICS

Revolutionary in composition, Eco Seal^® Series foam products compete favorably with high end rubbers such as EPDM, Nitrile, SBR Blends, ECH, EPT.
ESL Series is a self-extinguishing formulation and meets FMVSS 302A.
Unaffected by harsh chemicals such as gasoline, oil, hydraulic fluid, brake fluid, alcohol, and anti-freeze, as well as sulfuric acid, nitric acid and even hydrochloric acid.
Does not become brittle or exhibit loss of properties over time and wide temperature ranges.
UV and Oxidation resistant.
Plasticizer migration virtually eliminated to eradicate marring, crazing, or cracking problems.
Maintains physical properties under various sterilization conditions.
Specifically formulated to meet automotive specifications- see Gaska Tape Automotive Products on our website.
Black color standard, other colors and densities available upon request.
Sulfur-Free

Click Here to download our Limited Warranties.

Click Here to download our Manufacturing Tolerances.

Click Here to learn “Why we have Storage Guidelines”.

ROLL SIZES

Available Thicknesses:
ESL600 .098” – .787” (2.5mm – 20.0mm)
ESL1000 .059” – .591” (1.6mm – 15.0mm)

Available Widths:
.250” – 57” (6.4mm – 1448mm)

Available Lengths:
25’ – 302’ (7.6M – 92M)

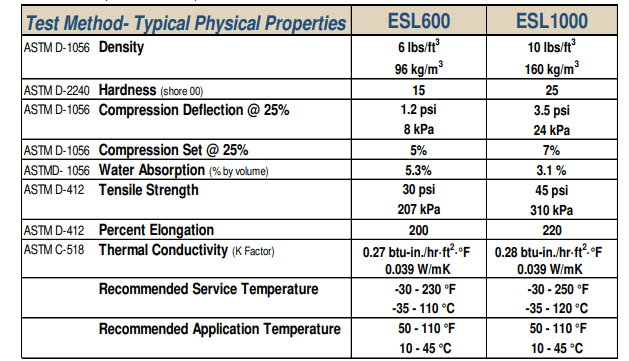

TYPICAL PHYSICAL PROPERTIES

NOTES: The length of the rolls vary depending on the thickness of the material. Gaska Tape offers standard length logs. Master logs are double the standard length plus 2′ and available upon request for quote.

All tests were performed on material without PSA. Above values reflect average properties.

Typical performance properties and characteristics are based on samples tested and are not guaranteed for all samples of this product.

Data is intended as a guide only and is presented without guarantees and without assumption of liabilities resultant from the use of information provided. This data is not to be used for specification purposes.
